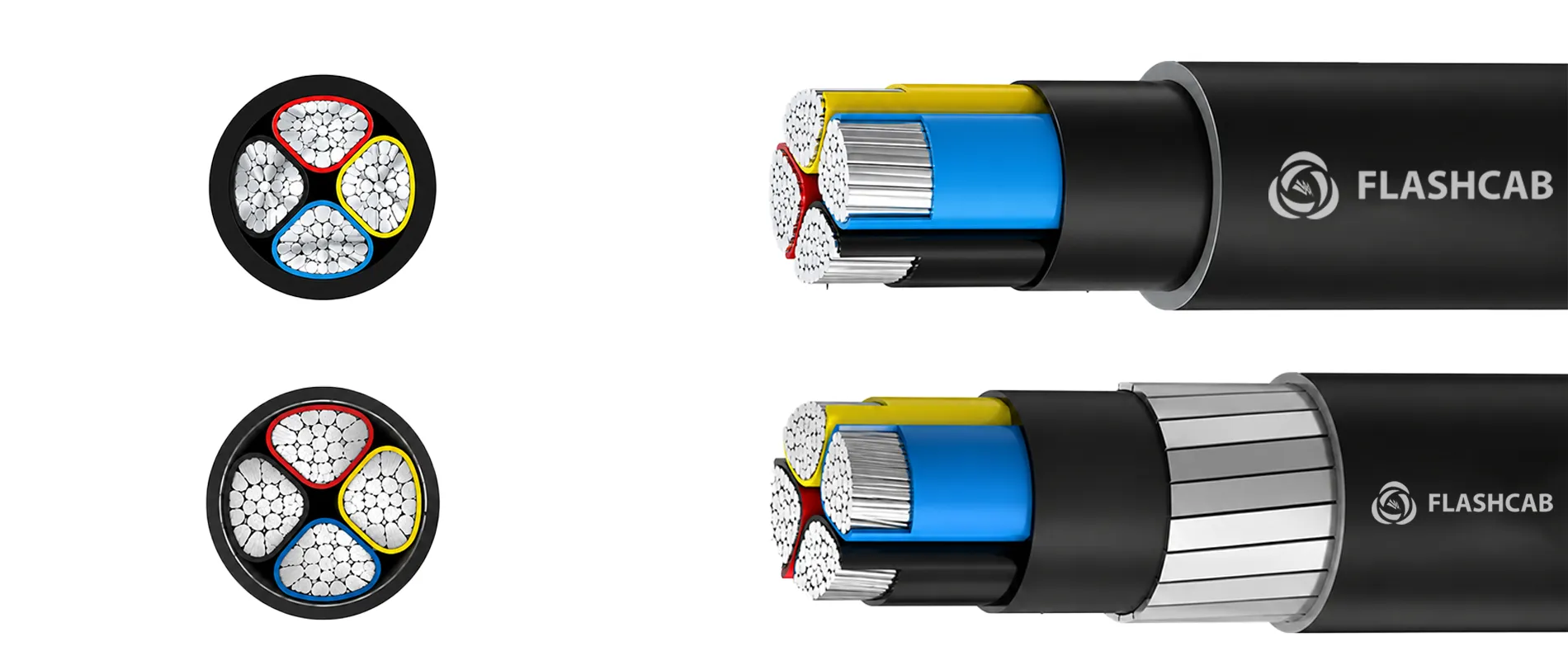

Four Core Armoured and Unarmoured (Aluminum)

Applicable standard

IS:7098 (Part-1)-2025, IEC:60502-1, IS:8130, IS:5831

Salient Features

Four equal cores for three-phase + neutral distribution
Aluminium conductor — lighter and more economical than copper
Robust armoured construction for underground/outdoor use
Excellent dielectric strength and insulation resistance
Resistant to moisture, abrasion, chemicals, and UV
Suitable for direct burial and duct installations

Technical Data

Voltage Grade1.1 kV (Up to and including)

Operating Temp+90°C (XLPE)

Nominal Voltage1.1 KV

Test Voltage3.5 KV

Core ColourRed, Yellow, Blue & Black

Construction

ConductorStranded Aluminium Class-2 as per IS 8130

InsulationXLPE (Cross-linked Polyethylene)

Inner SheathExtruded PVC or LD Tapping

ArmourGalvanized Steel Wire / Steel Strip Armour (Armoured Variant)

Outer SheathPVC (ST2) Extruded, Black Colour

PackingWooden Drums

Length100 Mtr, 200 Mtr, 500 Mtr

Application

Extensively used in three-phase four-wire power distribution systems for industrial plants, commercial complexes, distribution transformer secondaries, substations, and underground feeder networks. Ideal where equal current carrying capacity is needed in all four conductors.

Complete Specification Data

650/1100 VOLTS WEIGHT & DIMENSIONS

Nominal Size of Conductor	Form of Conductor Circular Shaped	Nominal Thickness of XLPE Insulation	Minimum Thickness of PVC Inner Sheath	Unarmoured Cable			Formed Wire / Strip Armoured Cable				Round Wire Armoured Cable				Current Rating.*		*Normal Delivery Length
Nominal Size of Conductor	Form of Conductor Circular Shaped	Nominal Thickness of XLPE Insulation	Minimum Thickness of PVC Inner Sheath	Nominal Thickness of PVC Outer Sheath	Approx. Overall Diameter of Cable	Approx. Weight of Cable	Nominal Dimen- sion of GI Flat Strip	Minimum Thickness of PVC Outer Sheath	Approx. Overall Diameter of Cable	Approx. Weight of Cable	Nominal Dimen- sion of GI Round Strip	Minimum Thickness of PVC Outer Sheath	Approx. Overall Diameter of Cable	Approx. Weight of Cable	In Ground	In Air	*Normal Delivery Length
Sq.mm		mm	mm	mm	mm	Kgs./Km	mm	mm	mm	Kgs./Km	mm	mm	mm	Kgs./Km	Amps.	Amps.	Mtrs.
4	Solid	0.70	0.30	1.80	13.50	160	-NA-	-NA-	-NA-	-NA-	1.40	1.24	15.30	413	35	32	1000
4	Stranded	0.70	0.30	1.80	14.20	180	-NA-	-NA-	-NA-	-NA-	1.40	1.24	16	435	35	32	1000
6	Solid	0.70	0.30	1.80	14.70	200	-NA-	-NA-	-NA-	-NA-	1.40	1.24	16.50	473	46	42	1000
6	Stranded	0.70	0.30	1.80	15.50	215	-NA-	-NA-	-NA-	-NA-	1.40	1.24	17.30	506	46	42	1000
10	Solid	0.70	0.30	1.80	16.60	250	-NA-	-NA-	-NA-	-NA-	1.40	1.40	18.60	592	57	54	1000
10	Stranded	0.70	0.30	1.80	17.50	260	-NA-	-NA-	-NA-	-NA-	1.40	1.40	19.80	633	57	54	1000
16	Stranded	0.70	0.30	1.80	17.80	350	4 x 0.80	1.40	20	608	1.60	1.40	21	795	74	69	1000
25	Stranded	0.90	0.30	2	21	550	4 x 0.80	1.40	23	828.50	1.60	1.40	25	1045	95	93	500
35	Stranded	0.90	0.30	2	23.50	680	4 x 0.80	1.40	25	997	1.60	1.40	26.50	1244	114	114	500
50	Stranded	1	0.30	2	26	875	4 x 0.80	1.56	28	1235	1.60	1.56	29.50	1520	134	138	500
70	Stranded	1.10	0.40	2.20	30.50	1200	4 x 0.80	1.56	32	1615	2	1.56	34	2137	164	175	500
95	Stranded	1.10	0.40	2.20	33.50	1530	4 x 0.80	1.56	35	2014	2	1.72	38	2622	197	216	500
120	Stranded	1.20	0.50	2.40	37.50	1850	4 x 0.80	1.72	39	2403	2	1.88	42	3087	223	249	500
150	Stranded	1.40	0.50	2.60	42	2280	4 x 0.80	1.88	43	2888	2.50	2.04	47	3980	249	284	500
185	Stranded	1.60	0.50	2.80	46.50	2800	4 x 0.80	2.04	48	3505	2.50	2.20	52	4721	282	329	500
240	Stranded	1.70	0.60	3	52.50	3700	4 x 0.80	2.20	54	4389	2.50	2.36	57.50	5709	327	392	500
300	Stranded	1.80	0.70	3.20	58	4600	4 x 0.80	2.36	59.50	5291	3.15	2.52	64.50	7372	369	452	500
400	Stranded	2	0.70	3.60	65.50	6000	4 x 0.80	2.68	66.50	6583	3.15	2.84	71.50	8985	420	526	500

The above data is approximate and subject to manufacturing tolerance.

* Delivery Length tolerance is ±5%. Length more than normal as per customer request.
