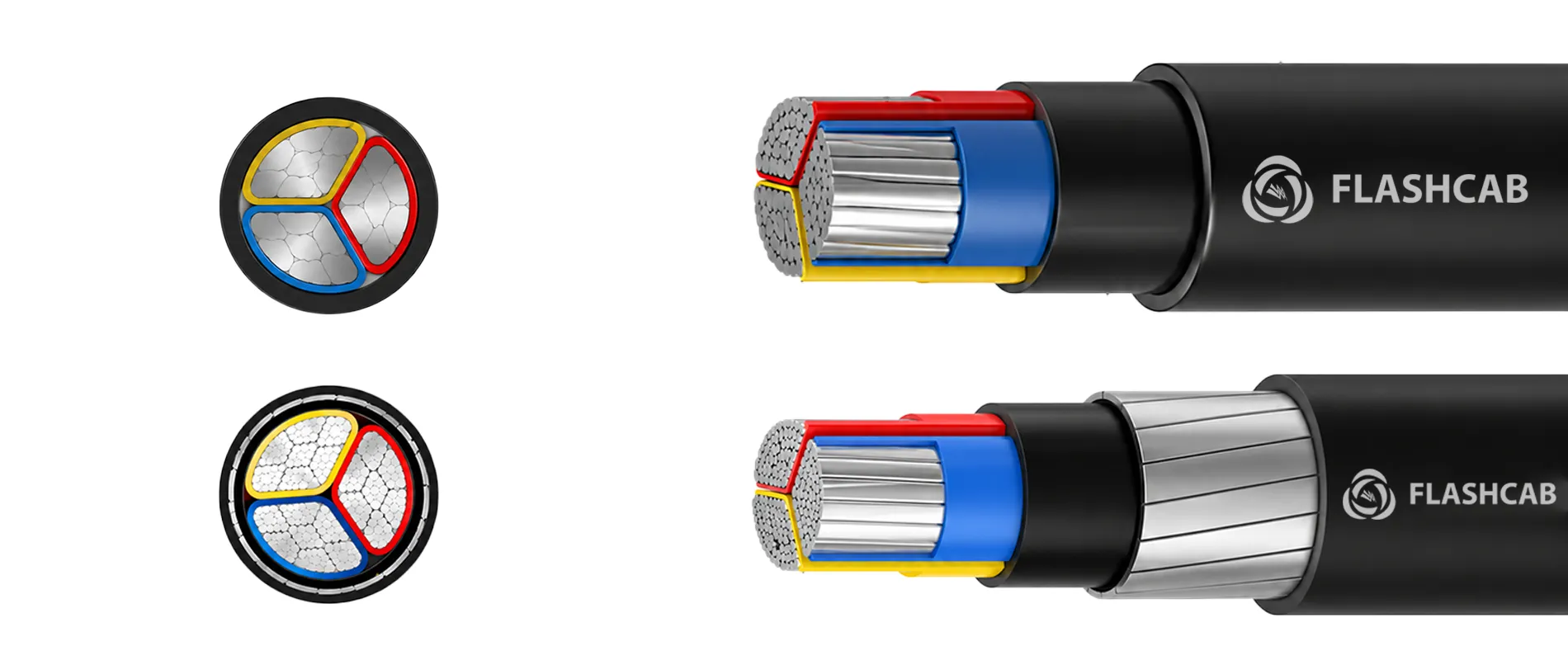

Three Core Armoured and Unarmoured (Aluminum)

Applicable standard

IS:7098 (Part-1)-2025, IEC:60502-1, IS:8130, IS:5831

Salient Features

Three-core design for three-phase power distribution
Aluminium conductor — cost-effective alternative to copper
Superior mechanical protection with armoured variant
Excellent resistance to moisture, abrasion, and chemicals
Suitable for underground and direct burial installations
Long service life with minimal maintenance requirements

Technical Data

Voltage Grade1.1 kV (Up to and including)

Operating Temp+90°C (XLPE)

Nominal Voltage1.1 KV

Test Voltage3.5 KV

Core ColourRed, Yellow & Blue

Construction

ConductorStranded Aluminium Class-2 as per IS 8130

InsulationXLPE (Cross-linked Polyethylene)

Inner SheathExtruded PVC or LD Tapping

ArmourGalvanized Steel Wire / Steel Strip Armour (Armoured Variant)

Outer SheathPVC (ST2) Extruded, Black Colour

PackingWooden Drums

Length100 Mtr, 200 Mtr, 500 Mtr

Application

Widely used for three-phase power distribution in industrial plants, substations, commercial buildings, and underground cable networks. Suitable for power distribution requiring robust mechanical protection.

Complete Specification Data

650/1100 VOLTS WEIGHT & DIMENSIONS

Nominal Size of Conductor	Form of Conductor Circular Shaped	Nominal Thickness of XLPE Insulation	Minimum Thickness of PVC Inner Sheath	Unarmoured Cable			Formed Wire / Strip Armoured Cable				Round Wire Armoured Cable				Current Rating.*		*Normal Delivery Length
Nominal Size of Conductor	Form of Conductor Circular Shaped	Nominal Thickness of XLPE Insulation	Minimum Thickness of PVC Inner Sheath	Nominal Thickness of PVC Outer Sheath	Approx. Overall Diameter of Cable	Approx. Weight of Cable	Nominal Dimen- sion of GI Flat Strip	Minimum Thickness of PVC Outer Sheath	Approx. Overall Diameter of Cable	Approx. Weight of Cable	Nominal Dimen- sion of GI Round Strip	Minimum Thickness of PVC Outer Sheath	Approx. Overall Diameter of Cable	Approx. Weight of Cable	In Ground	In Air	*Normal Delivery Length
Sq.mm	mm	mm	mm	mm	mm	Kgs./Km	mm	mm	mm	Kgs./Km	mm	mm	mm	Kgs./Km	Amps.	Amps.	Mtrs.
4	Solid	0.70	0.30	1.80	13	140	-NA-	-NA-	-NA-	-NA-	1.40	1.24	15	460	35	32	1000
4	Stranded	0.70	0.30	1.80	13.50	160	-NA-	-NA-	-NA-	-NA-	1.40	1.24	16	399	35	32	1000
6	Solid	0.70	0.30	1.80	14.50	170	-NA-	-NA-	-NA-	-NA-	1.40	1.24	16	530	46	42	1000
6	Stranded	0.70	0.30	1.80	15	190	-NA-	-NA-	-NA-	-NA-	1.40	1.24	17	470	46	42	1000
10	Solid	0.70	0.30	1.80	15.50	220	-NA-	-NA-	-NA-	-NA-	1.40	1.24	18	640	57	54	1000
10	Stranded	0.70	0.30	1.80	17	230	-NA-	-NA-	-NA-	-NA-	1.40	1.24	18.50	551	57	54	1000
16	Stranded	0.70	0.30	1.80	16.20	304	4 x 0.80	1.24	16.80	487.60	1.60	1.40	19	648.40	74	69	1000
25	Stranded	0.90	0.30	2	19.50	446	4 x 0.80	1.40	20.10	670.70	1.60	1.40	21.70	855.00	95	93	1000
35	Stranded	0.90	0.30	2	21.50	551	4 x 0.80	1.40	22	798.00	1.60	1.40	23.60	997.00	114	114	1000
50	Stranded	1	0.30	2	24.50	693	4 x 0.80	1.40	24.80	960.00	1.60	1.56	26.80	1235.00	134	138	1000
70	Stranded	1.10	0.40	2.20	28	950	4 x 0.80	1.56	28.50	1282	2	1.56	30.90	1729.00	164	175	500
95	Stranded	1.10	0.40	2.20	30.80	1206	4 x 0.80	1.56	31.30	1577	2	1.56	33.70	2077.00	197	216	500
120	Stranded	1.20	0.40	2.20	33.80	1463	4 x 0.80	1.56	34.30	1871	2	1.72	37	2422.00	223	249	500
150	Stranded	1.40	0.50	2.40	37.90	1814	4 x 0.80	1.72	38.30	2100	2	1.88	41.10	2888.00	249	284	500
185	Stranded	1.60	0.50	2.60	42	2242	4 x 0.80	1.88	42.30	2500	2.50	2.04	46	3733.00	282	329	500
240	Stranded	1.70	0.60	2.80	46.90	2869	4 x 0.80	2.04	47.20	3382	2.50	2.20	50.90	4531.00	327	392	500
300	Stranded	1.80	0.60	3	51.50	3505	4 x 0.80	2.20	51.80	4066	2.50	2.36	55.45	5339.00	369	452	500
400	Stranded	2	0.70	3.20	58.60	4427	4 x 0.80	2.52	58.50	5101	3.15	2.68	64	7115.00	420	526	500
500	Stranded	2.20	0.70	3.60	66	5681	4 x 0.80	2.68	65	6365	3.15	2.84	73	8597.00	478	612	250
630	Stranded	2.40	0.70	3.80	72	7125	4 x 0.80	2.84	73	7894	4	3	78	11295	542	712	250

The above data is approximate and subject to manufacturing tolerance.

* Delivery Length tolerance is ±5%. Length more than normal as per customer request.
