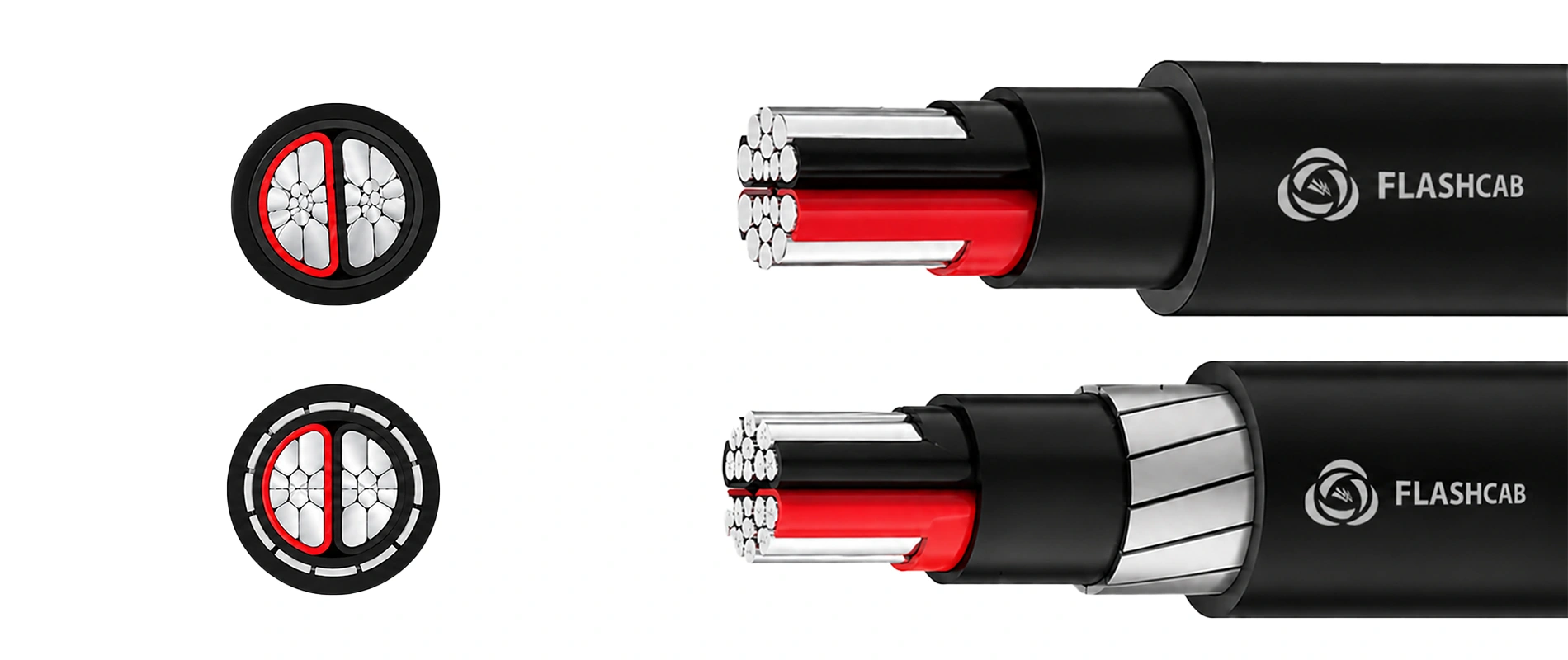

Two Core Armoured and Unarmoured (Aluminum)

1100 V XLPE insulated LT power cable with stranded aluminium conductors for industrial, commercial and infrastructure applications. Available in Armoured and Unarmoured variants.

Applicable standard

IS:7098(Part1)-2025. IEC:60502-1, IS:8130, IS:5831

Technical Data

Voltage Grade1100 V

Operating Temperature90°C

Short Circuit Temperature250°C

Available Size4–630 Sq.mm

Construction

ConductorStranded Aluminium Conductor - Class-2

InsulationXLPE (Cross-linked Polyethylene)

Inner Sheath Extruded PVC or LD Tapping

ArmourGalvanized Steel Wire / Steel Strip Armour (Armoured Variant)

Outer SheathExtruded PVC Black

Application

Power Distribution
Industrial Plants
Commercial Buildings
Substations
Infrastructure
Renewable Energy

Complete Specification Data

650/1100 VOLTS WEIGHT & DIMENSIONS

Nominal Size of Conduc- tor	Form of Conductor Circular Shaped	Nominal Thickness of XLPE Insulation For U/A	Minimum Thickness of PVC Inner Sheath	Unarmoured Cable			Formed Wire / Strip Armoured Cable				Round Wire Armoured Cable				Current Rating.*		*Normal Delivery Length
Nominal Size of Conduc- tor	Form of Conductor Circular Shaped	Nominal Thickness of XLPE Insulation For U/A	Minimum Thickness of PVC Inner Sheath	Nominal Thickness of PVC Outer Sheath	Approx. Overall Diameter of Cable	Approx. Weight of Cable	Nominal Dimen- sion of Alumin- ium Flat Strip	Minimum Thickness of PVC Outer Sheath	Approx. Overall Diameter of Cable	Approx. Weight of Cable	Nominal Dimen- sion of Alumin- ium Round Wire	Minimum Thickness of PVC Outer Sheath	Approx. Overall Diameter of Cable	Approx. Weight of Cable	In Ground	In Air	*Normal Delivery Length
Sq.mm	mm	mm	mm	mm	mm	Kgs./Km	mm	mm	mm	Kgs./Km	mm	mm	mm	Kgs./Km	Amps.	Amps.	Mtrs.
4	Solid	0.70	0.30	1.80	12.50	140	-	-	-	-	1.40	1.24	14.50	375	42	38	1000
4	Stranded	0.70	0.30	1.80	13	150	-	-	-	-	1.40	1.24	15.00	403	42	38	1000
6	Solid	0.70	0.30	1.80	13.50	170	-	-	-	-	1.40	1.24	15.50	437	55	50	1000
6	Stranded	0.70	0.30	1.80	14	180	-	-	-	-	1.40	1.24	16.50	465	55	50	1000
10	Solid	0.70	0.30	1.80	15	205	-	-	-	-	1.40	1.24	16	503	68	64	1000
10	Stranded	0.70	0.30	1.80	16	225	-	-	-	-	1.40	1.24	18	551	68	64	1000
16	Stranded	0.70	0.30	1.80	14	225	-	-	-	-	1.40	1.40	17	480.16	89	83	1000
25	Stranded	0.90	0.30	2	17	330	4 x 0.80	1.40	18.50	509.13	1.60	1.40	20	671.84	114	109	1000
35	Stranded	0.90	0.30	2	19	410	4 x 0.80	1.40	20	605.51	1.60	1.40	22	775.55	136	133	1000
50	Stranded	1	0.30	2	21	510	4 x 0.80	1.40	22.50	753.28	1.60	1.40	24	937.97	161	162	1000
70	Stranded	1.10	0.30	2	23	675	4 x 0.80	1.56	22.50	989	1.60	1.56	27	1186.85	197	204	1000
95	Stranded	1.10	0.40	2.20	26.50	893	4 x 0.80	1.56	28	1204.30	2	1.56	28.68	1572.78	235	251	1000
120	Stranded	1.20	0.40	2.20	28.50	1050	4 x 0.80	1.56	30.50	1408.20	2	1.56	33	1849.49	266	287	500
150	Stranded	1.40	0.40	2.20	32	1215	4 x 0.80	1.72	31.79	1690.20	2	1.72	36	2182.96	296	328	500
185	Stranded	1.60	0.50	2.40	35.50	1510	4 x 0.80	1.72	34.95	2004.00	2	1.88	37.70	2597.60	335	379	500
240	Stranded	1.70	0.50	2.60	39.50	1900	4 x 0.80	1.88	38.69	2480.00	2.50	2.04	45	3418.52	385	448	500
300	Stranded	1.80	0.60	2.80	43.50	2360	4 x 0.80	2.04	42.53	2964.00	2.50	2.20	46.22	4019.07	432	513	500
400	Stranded	2	0.60	3	49	3100	4 x 0.80	2.36	48.24	3676.00	2.50	2.36	51.61	4854.00	487	593	500
500	Stranded	2.20	0.70	3.40	55.50	4000	4 x 0.80	2.52	56.50	4599.00	3.15	2.68	61.50	6517.00	548	683	500
630	Stranded	2.40	0.70	3.60	61.50	4997	4 x 0.80	2.68	62.50	5662.00	3.15	2.84	67.50	7790.00	612	784	500

The above data is approximate and subject to manufacturing tolerance.
* Delivery Length tolerance is ±5%. Length more than normal as per customer request.
