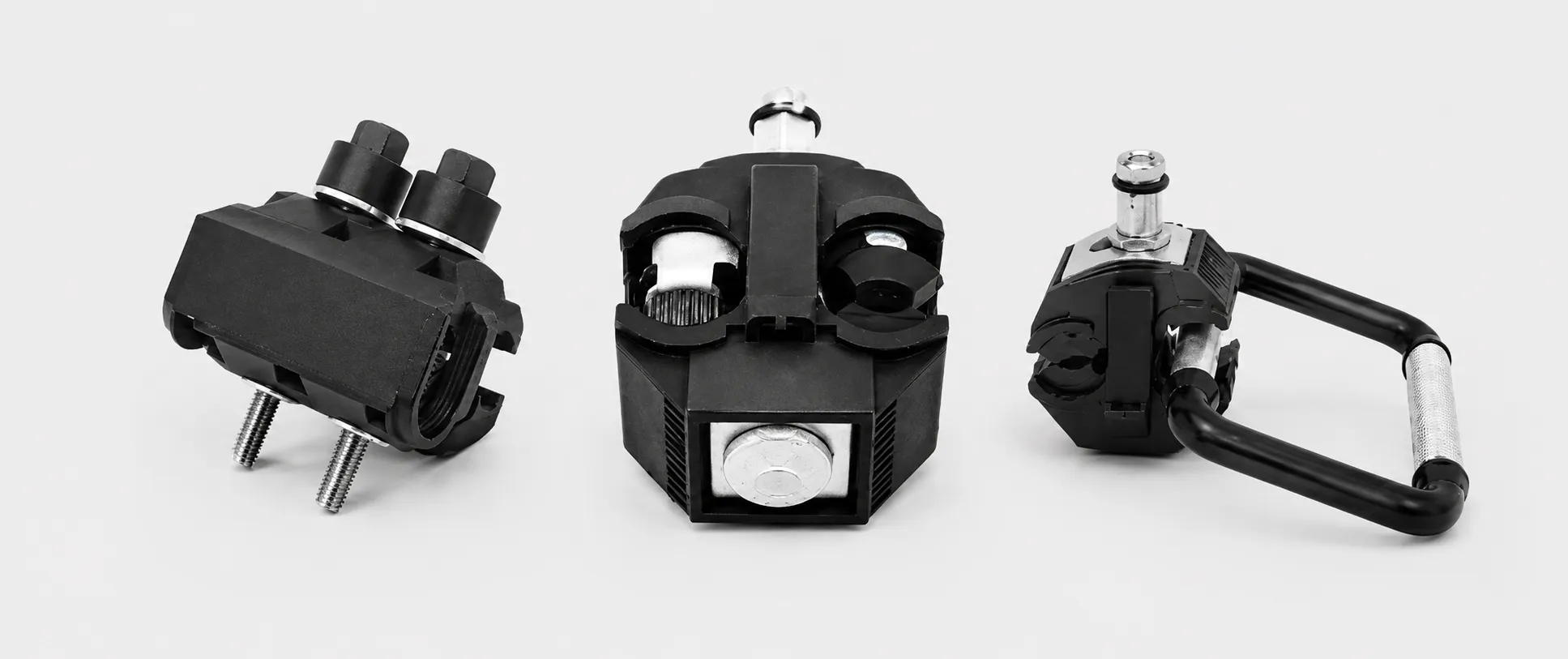

Insulation Piercing Connectors (IPC)

Insulation Piercing Connectors (IPCs) are used in Medium Voltage Covered Conductor (MVCC) systems. They enable connections without stripping the conductor's insulation, offering reliable performance and ease of installation. IPCs are commonly used to continue the line over the pole, for tapping, or for network connections to extend the MVCC system.

Three Primary Application Configurations:

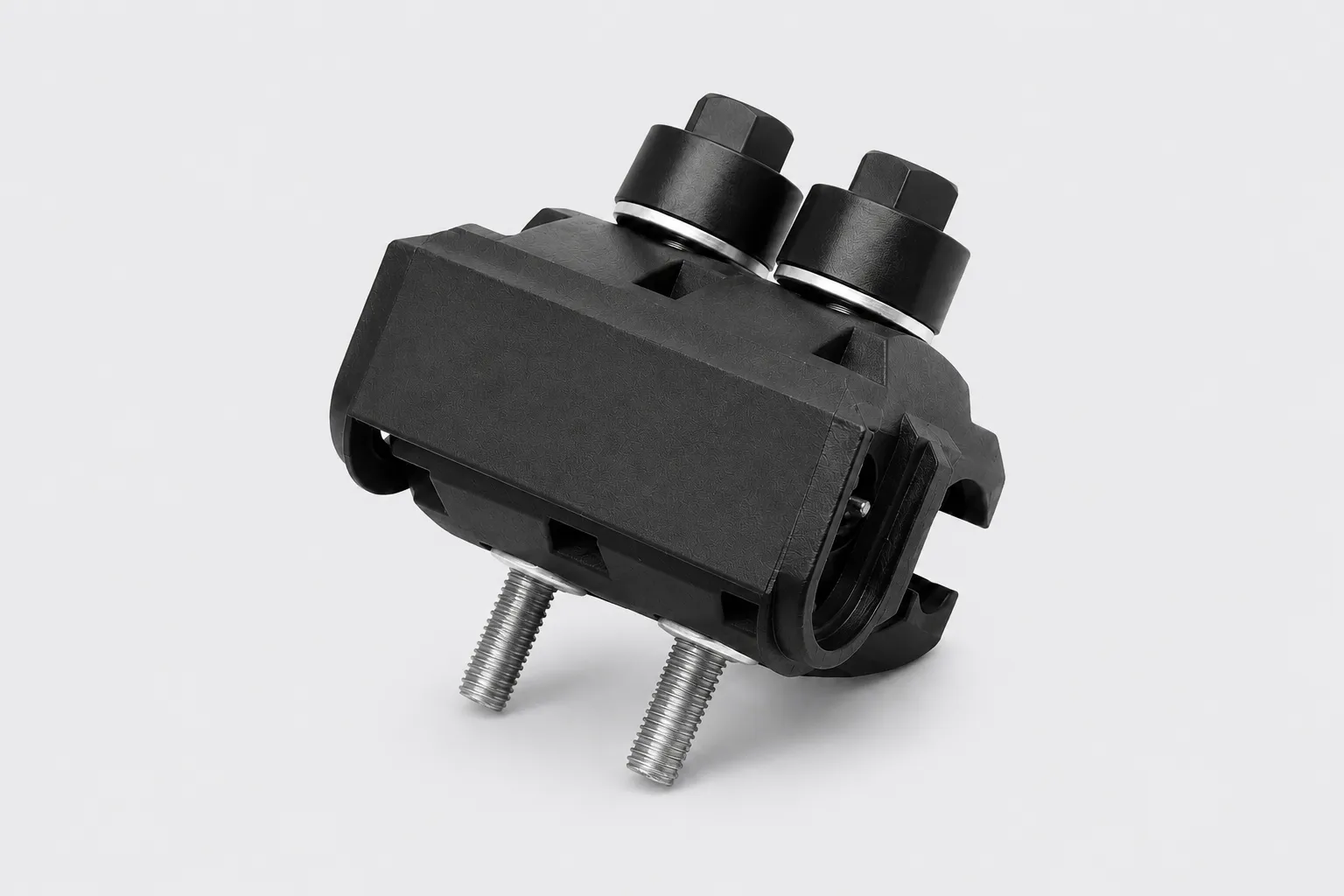

Covered-to-Covered Connectors

Configured to branch or tap power from one insulated MVCC line directly into another insulated conductor loop. Ideal for building urban or forest grid extensions.

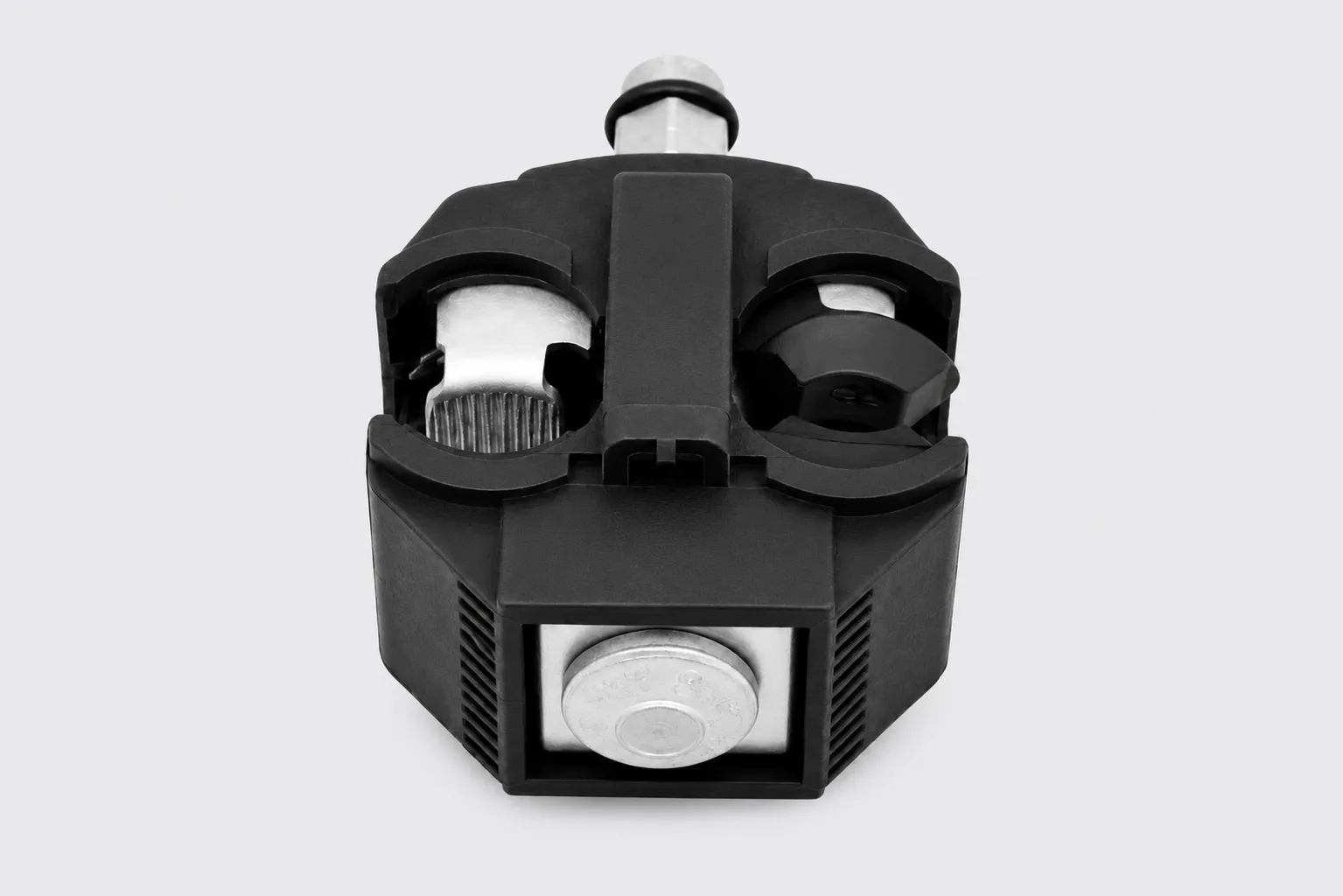

Covered-to-Bare Connectors

Engineered to merge upgraded insulated MVCC spans into older bare-wire infrastructure. Features piercing teeth on the covered cable side and a clamping channel on the bare wire side.

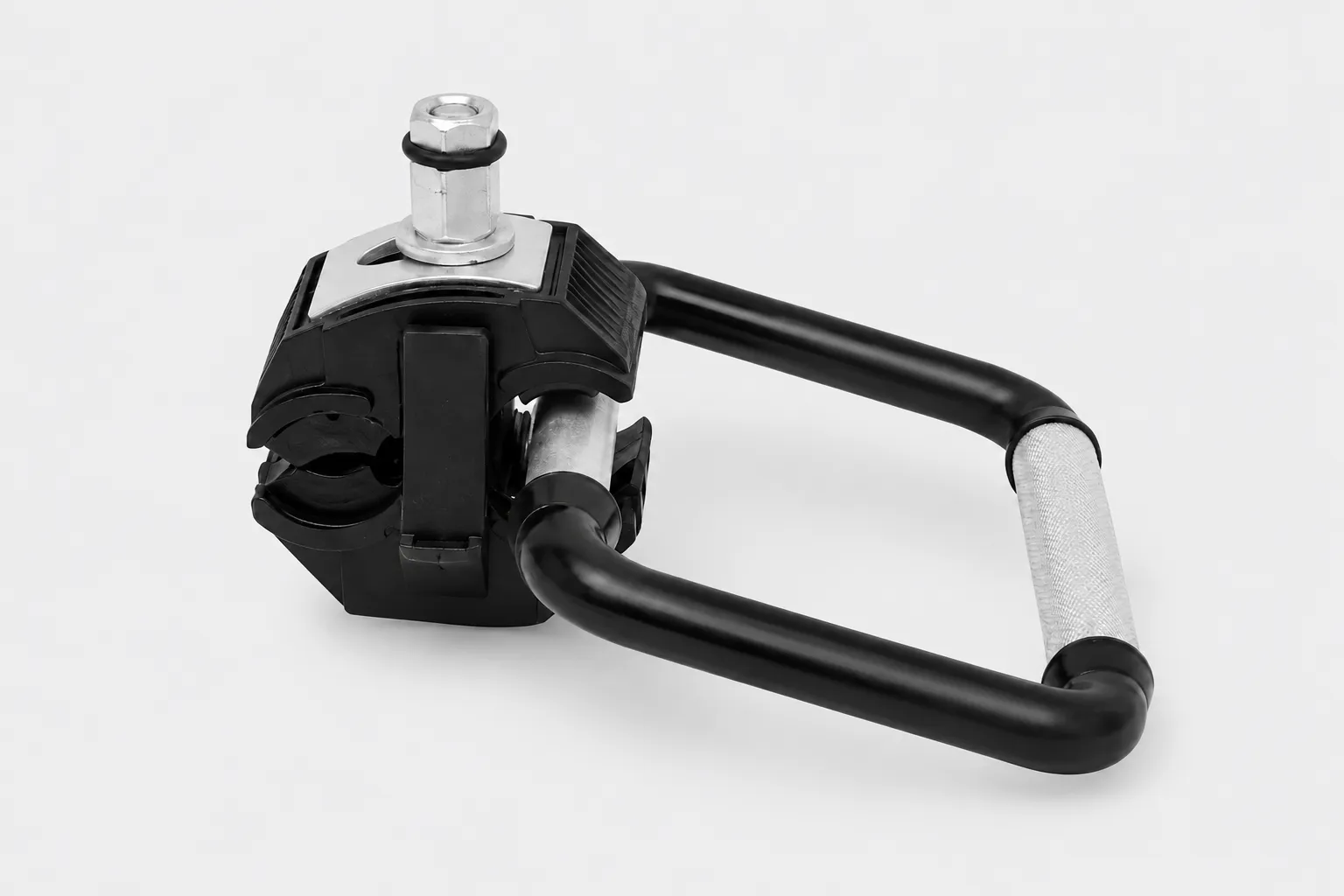

Earthing / Grounding Connectors

Installed permanently at strategic utility pole intervals. They pierce the conductor core to establish a safe, accessible grounding interface for maintenance workers.

Features & Benefits

Torque-Controlled Shear-Head Bolt
High-Strength Geometric Contact Blades
Fully Insulated Single-Piece Body
Guaranteed Exact Tightening Force
Safe, Hot-Stick Live-Line Working
Complete Waterproof Protection
Eliminates Galvanic & Electrolytic Corrosion

Complete Specification Data

Materials

Body (Housing) — Black high-strength engineering polymer for mechanical reliability of the connector. The body serves as a high-strength structural cage while providing complete electrical isolation.

Penetrating Contact Blades (Teeth) — High-Strength Premium Aluminum Alloy.

Fasteners & Shear-Head Bolts — Hot-Dip Galvanized Steel, torque-controlled engineering plastic.
