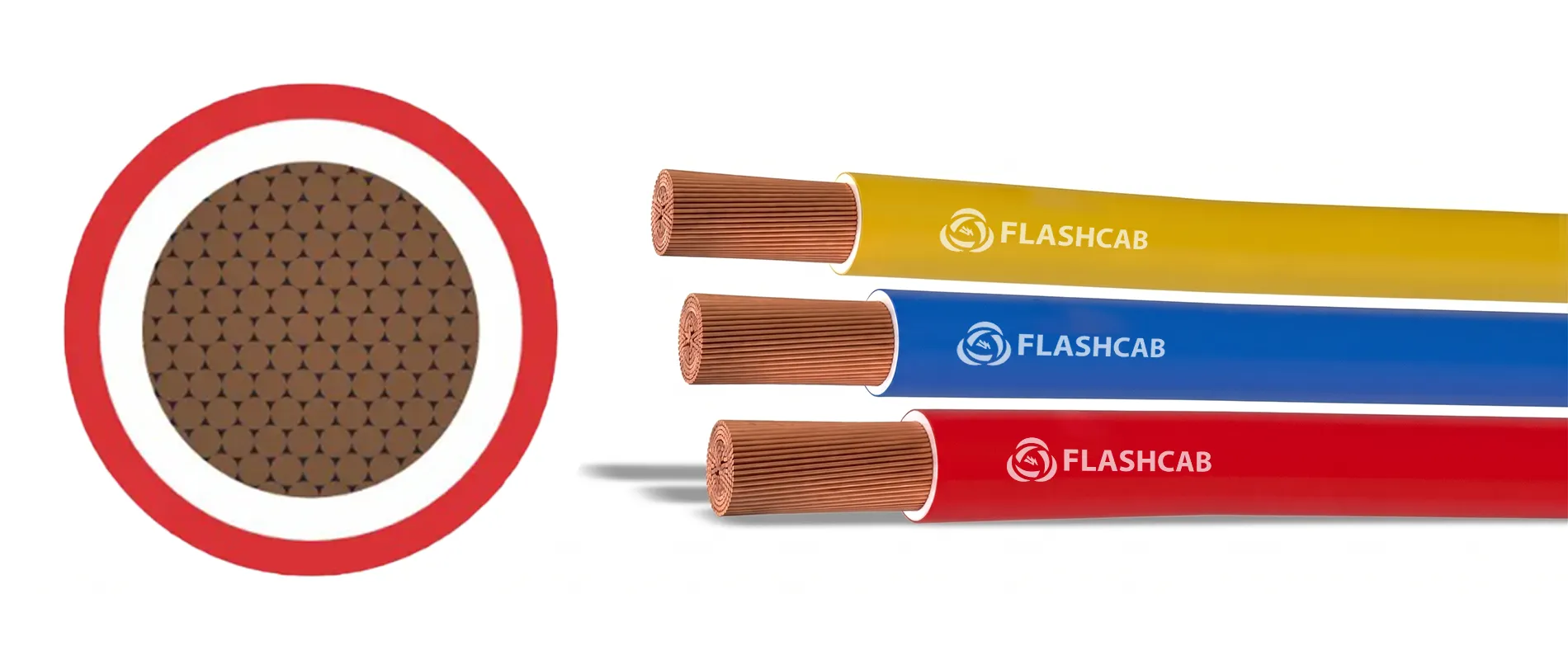

Building wire (House wire)
Applicable standard
Generally conforms to IS 694:2010, BS6004
Salient Features
- High conductivity for lower power loss
- Flame retardant insulation
- Extra flexible conductor
- High insulation resistance
- Protection against short circuits
- Long service life
- RoHS compliant materials
- Easy installation and stripping
Technical Data
Voltage GradeUp to and including 1100V
Operating Temp-15°C to max. +70°C
Nominal Voltage1.1 KV
Test Voltage3.0 KV
Flame propagationFlame retardant test as per IS 10810-58,64, IEC 60332-1
ConductorAnnealed Plain bare Flexible Copper Class-1/ Class-2/Class-5 as per IS:8130, IEC:60228
InsulationExtruded FR/FRLSH/HR-PVC as per IS:5831
Packing90 Mtr, 180 Mtr, 360 Mtr
ColorRed, Yellow, Blue, Green, Black, Grey, Pink
Core Colour
Red, Yellow, Blue, Green, Black, Grey, Pink.
Application
Residential buildings, Commercial complexes, Offices, Educational institutions, Hospitals Industrial facilities.
Complete Specification Data
| Wire Size | No. of wire / Diameter of Wire | Insulation Thickness | OD | Max Conductor Resistance at 20°C | Current Rating |
|---|---|---|---|---|---|
| sq.mm | No./mm | mm | mm | Ω/km | Amps |
| 0.50 | 16/0.20 | 0.60 | 2.10 | 39.0 | 4 |
| 0.75 | 10/0.30* OR 24/0.20 | 0.60 | 2.40 | 26.0 | 8 |
| 1.0 | 14/0.30 OR 32/0.20 | 0.60 | 2.65 | 18.10 | 11 |
| 1.5 | 22/0.30* OR 30/0.250 | 0.70 | 3.0 | 12.10 | 13 |
| 2.5 | 36/0.30* OR 50/0.250 | 0.80 | 3.6 | 7.41 | 18 |
| 4.0 | 56/0.30 | 0.80 | 4.0 | 4.95 | 24 |
| 6.0 | 84/0.30 | 0.80 | 5.1 | 3.30 | 31 |
| 10.0 | 140/0.30 | 1.0 | 6.3 | 1.91 | 52 |
| 16.0 | 224/0.30 | 1.0 | 8.0 | 1.21 | 70 |
Class-2 Conductor.
If Required Tinned copper conductor also available.
