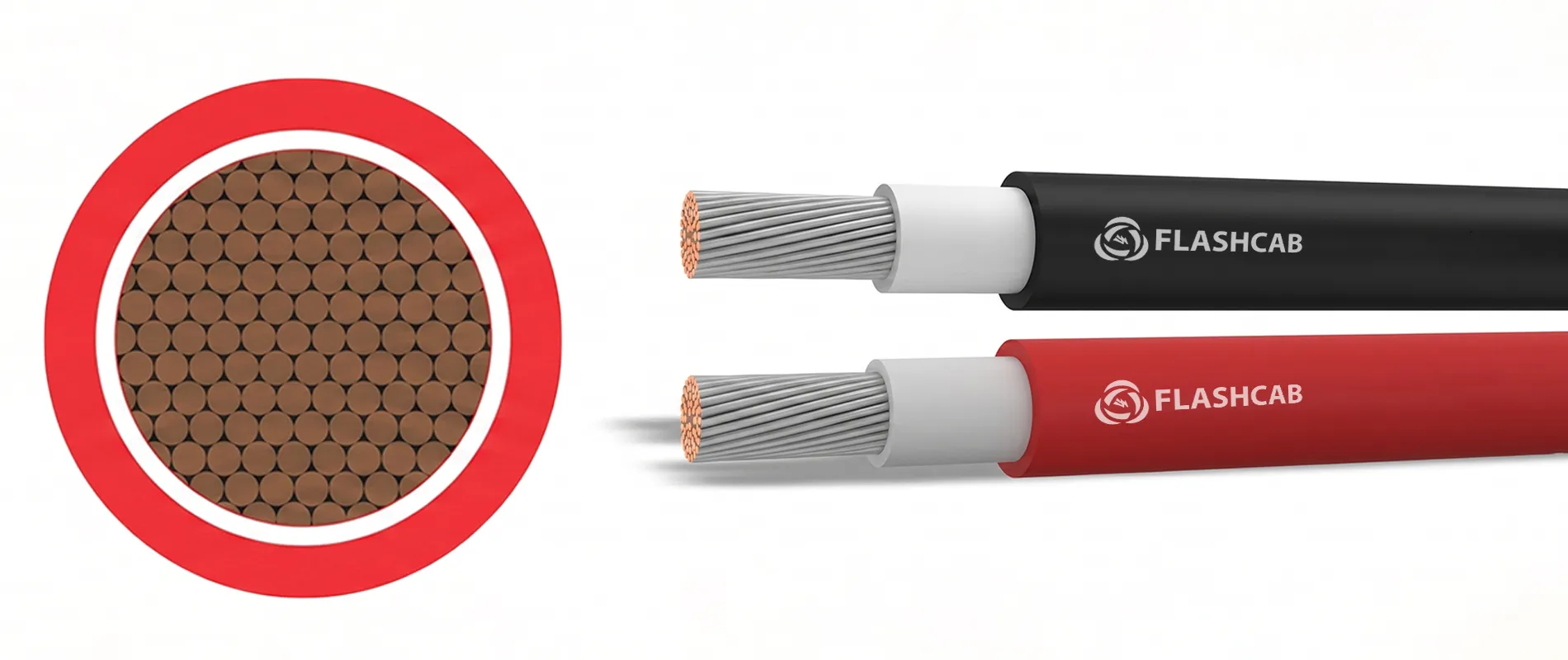

Solar Cable
Applicable standard
EN 50618
Salient Features
- UV resistant
- Weather resistant
- Ozone resistant
- Moisture resistant
- Abrasion resistant
- Oil resistant
- Flexible for easy installation
- Halogen free
- Low smoke emission
Technical Data
Electrical Characteristics
Rated Voltage0.6/1 kV AC
Rated DC Voltage1.5 kV
Maximum Permitted DC Voltage1.8 kV (conductor/conductor,non earthen system, circuit not under load)
Maximum Permitted AC Voltage1 KV
Working VoltageDC 1000 V
Spark Test6000 V. ac (8400 Vdc)
Voltage Withstand6500 V as per EN50395 for 5 min
AmpacityAccording to requirements for cables for PV systems
ConductorFlexible Electrolytic fine Tinned copper class-5 conductor according to IEC 60228
InsulationXLPO (Crosslinked Halogen Free & Flame Retardant)
SheathXLPO (Crosslinked Halogen Free & Flame Retardant)
Core Colour
Red, Black and also available black color with red lining
Application
- Solar panel interconnection, PV string wiring, Inverter connections
- Battery energy storage systems
Complete Specification Data
| Cable Size | Max. Conductor D.C. Resistance at 20°C | Insulation Thickness | Sheath Thickness | Outer Diameter | Current Rating Under Continues Operation 90°C And Ambient Temperature 40°C (in A) | Short Circuit Current Rating For 1 sec. Duration (in KA) |
|---|---|---|---|---|---|---|
| sq.mm | ohm /km | (Nominal) mm | (Nominal) mm | mm | ||
| 1.5 | 13.7 | 0.60 | 0.70 | 4.30 | 22 | 0.189 |
| 2.5 | 8.21 | 0.70 | 0.80 | 5.0 | 30 | 0.315 |
| 4.0 | 5.09 | 0.70 | 0.80 | 5.60 | 42 | 0.504 |
| 6.0 | 3.39 | 0.80 | 0.90 | 6.20 | 52 | 0.756 |
| 10.0 | 1.95 | 0.80 | 0.90 | 7.10 | 76 | 1.26 |
| 16.0 | 1.24 | 0.90 | 1.0 | 8.30 | 95 | 2.02 |
