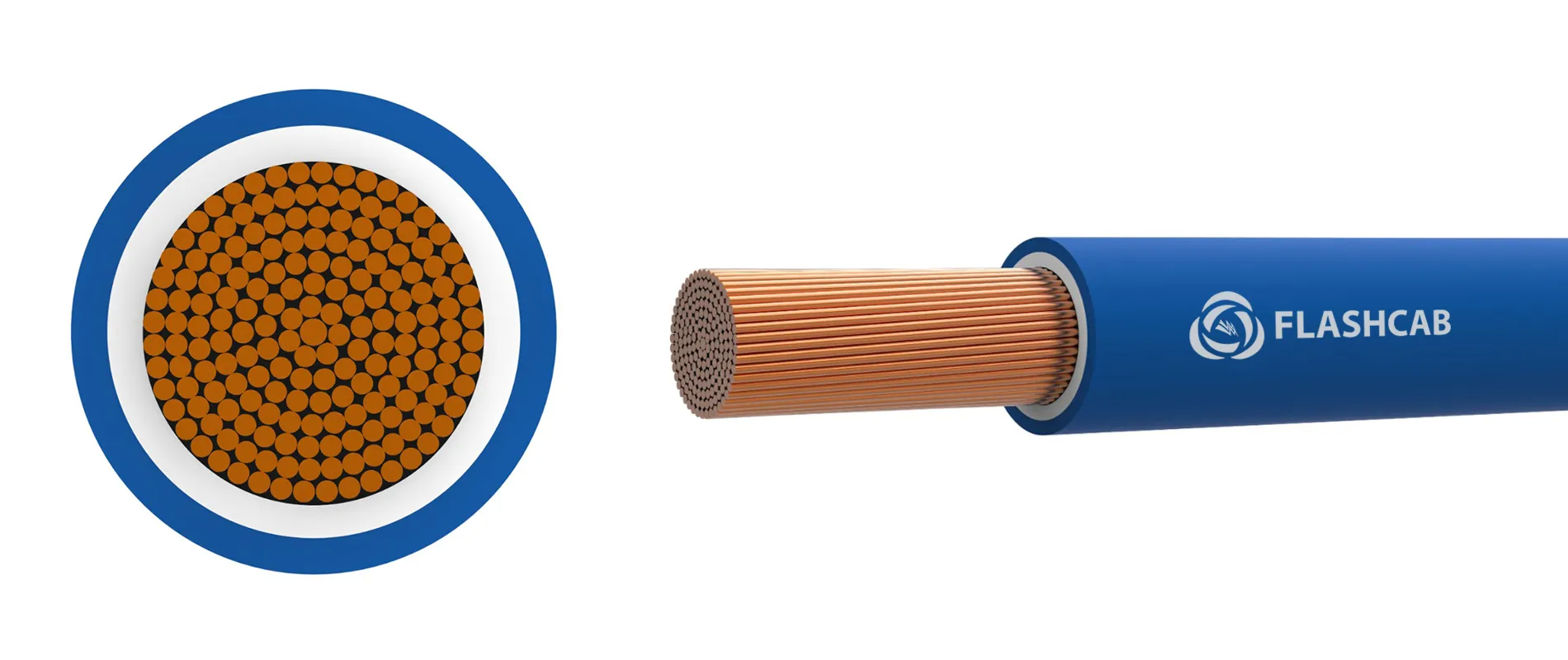

Single Core Wires

Applicable standard

Generally conforms to IS 694:2010, BS6004

Salient Features

Special heat resistant insulation
Higher current carrying capacity.
Fine copper wires
Highly thermal stable insulation
Excellent resistant to moisture, abrasion, grace, oil
Long Life
Excellent mechanical & electrical properties

Technical Data

Voltage GradeUp to and including 1100V

Operating Temp70°C

Nominal Voltage1.1 KV

Test Voltage3.0 KV

Flame propagationFlame retardant test as per IS 10810-58,64, IEC 60332-1

ConductorAnnealed Plain bare Flexible Copper Class-5 as per IS:8130, IEC:60228

InsulationExtruded FR/FRLSH/HR-PVC as per IS:5831

Packing100 Mtr, 200 Mtr, 500 Mtr

Core Colour

Red, Yellow, Blue, Green, Black, Grey

Application

Flexible single core cable with Flame Retardant PVC insulation. This cable can be used in panels, cabinets, machines and internal wirings with switchgears, relays, controllers, equipment's, controls units, etc.

Complete Specification Data

Size of Wire	No. of Wire / Size of Wire	Insulation Thickness	OD	Max conductor resistance at 20°C	Current Rating
sq. mm	Nos/mm	(Nominal) mm	mm	Ohm/km.	Amps
10.0	140/0.30	1.0	6.0	1.91	55
16.0	224/0.30	1.0	7.50	1.21	75
25.0	350/0.30	1.2	9.50	0.78	100
35.0	490/0.30	1.2	11.0	0.554	125
50.0	703/0.30	1.4	13.0	0.386	165
70.0	988/0.30	1.4	16.0	0.272	240
95.0	1349/0.30	1.6	17.5	0.206	300
120.0	608/0.50	1.6	19.0	0.161	325
150.0	767/0.50	1.8	21.0	0.129	352
185.0	943/0.50	2.0	23.5	0.106	400
240.0	1223/0.50	2.2	26.5	0.0801	475
300.0	1525/0.50	2.4	29.5	0.0641	550
400.0	2035/0.50	2.6	33.5	0.0486	670
500.0	2553/0.50	2.8	37.5	0.0384	750
630.0	3219/0.50	2.8	42.0	0.0287	875
