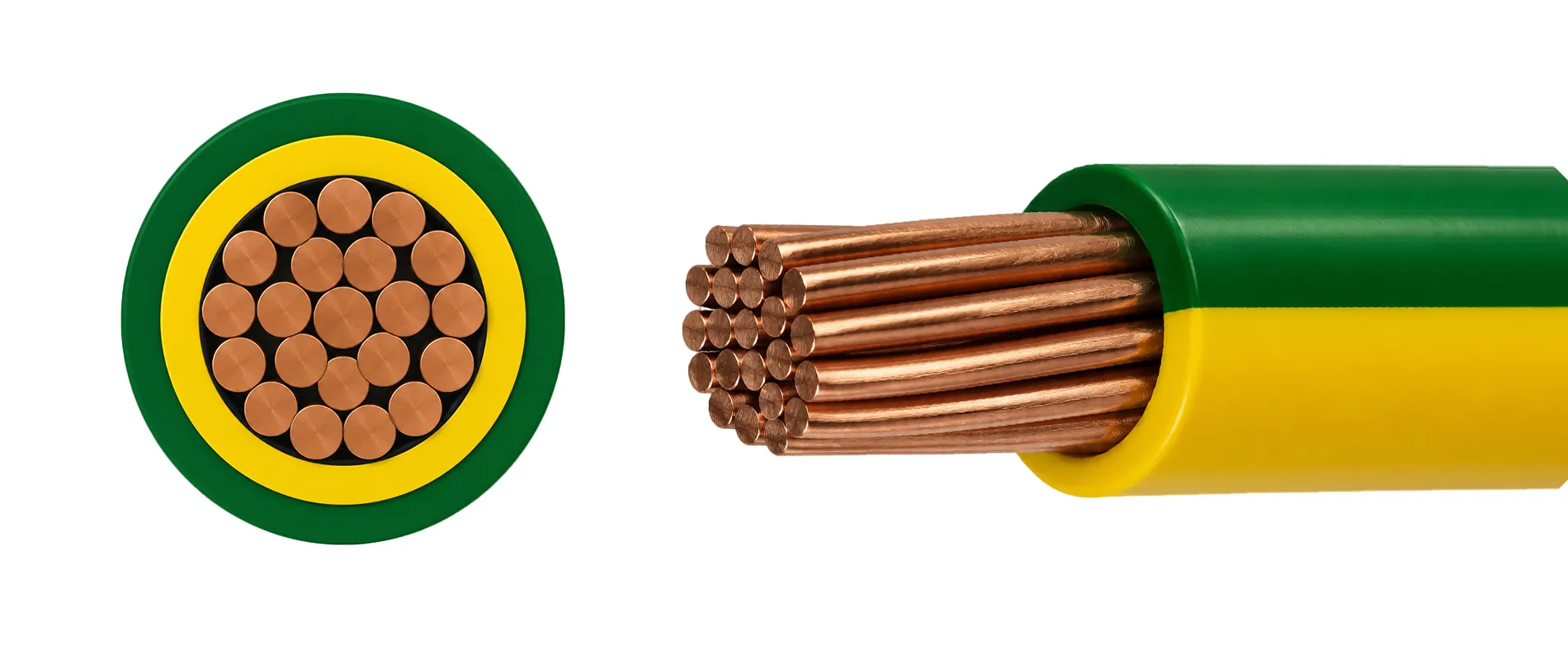

Earthing Cables

Applicable standard

Generally conforms to IS 694:2010, IEC60227, BS 6004

Salient Features

Technical Data

Voltage GradeUp to and including 1100V

Operating TempMax.+70°C

Nominal Voltage1.1 KV

Test Voltage3.0 KV

Flame propagationFlame retardant test as per IS 10810-58,64, IEC 60332-1

ColorGreen, Black, Yellow/Green

Construction

ConductorAnnealed Plain bare Flexible Copper Class-2 as per IS:8130, IEC:60228

InsulationExtruded FR/FRLSH/HR-PVC as per IS:5831

Packing100 Mtr, 200 Mtr, 500 Mtr

Application

This cable can be used in panels, cabinets, machines Earthing, internal wirings with switchgears, relays, controllers, equipment’s, controls units, etc.

Earthing Cables Specifications

Wire Size	No. of wire / Size of Wire	Insulation Thickness (Nominal)	OD	Max Conductor Resistance at 20°C	Current Rating
sq.mm	Nos./mm	mm	Mm	Ohm/km	Amps
6	7/1.0	0.8	5.10	3.08	31
10	7/1.30	1.0	6.50	1.83	52
16	7/1.70	1.0	8.0	1.15	70
25	7/2.13	1.2	10.0	0.727	88
35	7/2.52	1.2	11.50	0.524	112
50	19/1.83	1.4	13.50	0.387	146
70	19/2.16	1.4	16.0	0.268	190
95	19/2.52	1.6	17.5	0.193	250
120	37/2.0	1.6	19	0.153	310
150	37/2.25	1.8	21	0.124	355
185	37/2.52	2.0	23.5	0.0991	415
240	61/2.23	2.2	26.5	0.0754	500
300	61/2.50	2.4	29.5	0.0601	550
400	61/2.89	2.6	33.5	0.0470	670
500	61/3.23	2.8	37.5	0.0366	750
630	91/2.96	3.0	42	0.0283	875
