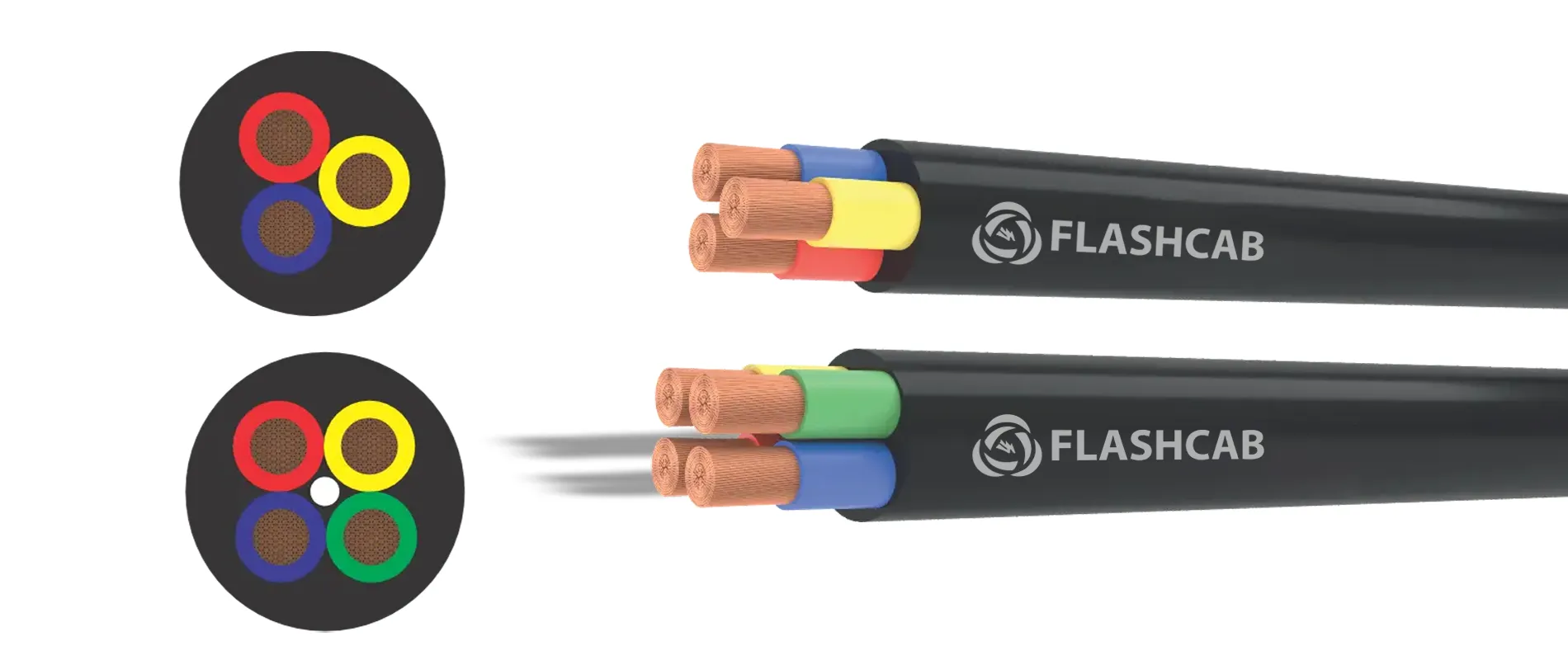

Industrial Flexible Cable

Applicable standard

Generally conforms to IS 694:2010, BS6004

Salient Features

Technical Data

Voltage GradeUp to and including 1100V

Operating Temp10°C to max.70°C

Nominal Voltage1.1 KV

Test Voltage3.0 KV

Construction

ConductorAnnealed Plain bare Flexible Copper Class-5 as per IS:8130, IEC:60228

InsulationPVC as per IS:5831-1984

SheathPVC as per IS:5831-1984

Packing100 Mtr, 200 Mtr, 500 Mtr

Core Colour

2 Core:Red & Black

3 Core:Red, Black, Green or Red, Yellow and Blue

4 Core:Red, Yellow, Blue and Green or Black

Outer Color:Black

Application

Household appliances, Extension cords, Portable power tools, industrial machinery, Pumps and motors,
Lighting installations, etc.....

Conductor		Insulation		Thickness of Sheath and Diameter (Approx.)				Conductor Resistance at 20°C (max)	Current Rating
Size of Cable	No. of Wire/Size of Wire	Thickness (Nominal)	Core OD	Sheath Thickness (Nominal)	2 Core Outer Diameter	3 Core Outer Diameter	4 Core Outer Diameter
Sq.mm	Nos.mm	mm	mm	mm	mm	mm	mm
0.50	16/0.20	0.60	2.05	0.90	5.70	6.05	6.50	39.0	4
0.75	24/0.20	0.60	2.30	0.90	6.10	6.90	7.25	26.0	7
1.0	32/0.20	0.60	2.50	0.90	6.90	7.10	8.10	19.50	11
1.5	30/0.25	0.60	2.90	0.90	7.80	8.5	9.25	13.30	14
2.5	50/0.25	0.70	3.50	1.0	9.25	9.50	11.20	7.98	18
4.0	56/0.30	0.80	4.0	1.10	10.75	11.60	12.40	4.95	24
6.0	84/0.30	0.80	5.0	1.10	12.90	13.70	15.0	3.30	31
10.0	140/0.30	1.0	6.0	2.0	17.80	19.50	20.25	1.91	52
16.0	224/0.30	1.0	7.30	2.0	20.20	21.20	23.40	1.21	70
25.0	350/0.30	1.2	9.50	2.30	24.10	25.90	28.20	0.780	88
35.0	490/0.30	1.2	11.0	2.50	27.20	29.0	31.45	0.554	112
50.0	700/0.30	1.4	13.0	2.80	30.0	34.0	37.0	0.386	146
70.0	980/0.30	1.4	15.0	3.10	35.0	38.0	42.5	0.272	180
95.0	1330/0.30	1.6	18.0	4.0	43.0	45.0	48.7	0.206	225
